Get XiED(tm)! Performance Parts

Don't let the Harley heat monster ruin your riding.
Reduce  Engine Surging
Improve Throttle Response
Reduce Engine Ping


HD 2007/2008 Engines

High Heat on 2007/08 HD engines

HD 2007/08 Performance Recommendations

Cool your exhaust temperature with the Wide Band O2 upgrade for 2007/08 HD

Harley Camshaft Specification Tables

HD Twin Cam Engine Builds
TC 128 HP 95 CID
TC 100HP Street Engine

The basics of Fuel Injection explained

Rammer Performance Air Cleaners
TC Performance Heads 100+HP

Pro Tuning on a Shade Tree Budget


Nightrider Performance Parts

Visit our new Nightrider Performance Products site for our performance upgrades

See Nightrider's Veypor Installation and Features Video

Description Features Price
Shipping Extra
Accelerator Engine Software Harley-Davidson Desktop engine simulation software.
Design and test engine components on your desktop before you buy the parts. The software simulation will estimate horsepower and torque for your Twin Cam, EVO, Sportster or V-Rod engine.
Test different cams, cylinder heads, carburetors, exhaust systems, bore and stroke combinations.
Latest Windows Version from Walters Technology is an upgrade from Accelerator Pro.
Updated pricing and ordering information at
Click to visit our new catalog site

shown with optional equipment

Full Instrumentation
Portable Dynamometer with plots
Full and Pro Tree 1/4 Mile Runs
0-60Mph and Braking Test Timing
Roll-on timing for any speeds
Graph results for all Runs
Save up to 8 runs
Calculate Fuel Mileage and fuel level
Separate Fuel Odometer
Odometer and Resettable Tripmeter
Metric or Imperial units
Two maintenance hour meters
Gear Indicator
Lap Timer and Course Analyzer
Store 4 separate vehicle setups
Super bright dual-level shiftlight
Programmable speed light
Download all Run data to a PC
Drag Coefficient Calculation
Rolling Resistance Calculation
Full-time datalogging for up to 24h
Programmable sampling rate
View all logging sessions on a PC
Time and Date with battery backup

Free Vehicle Analysis Software

Want to be able to select your own ranges for your HP and TQ vs RPM graphs? The VAS lets you select your own RPM ranges, a first in the industry.  Plot HP and TQ curves for each individual gear.

Better than a time slip, your 60ft, 330ft, 1/8mi, 1000ft, 1/4 mile times as well as Max and Trap Horse Power, Max Torque and Velocity, Reaction time and 0-60 times are calculated automatically for easy reference.

Plus many more features.

Updated pricing and ordering information at
Click to visit our new catalog site

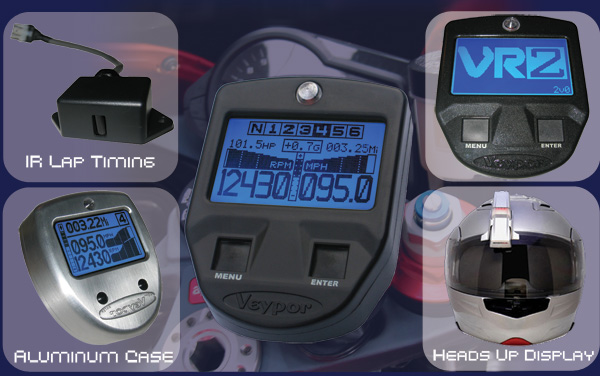

Veypor Billet Aluminum Case
This aircraft grade machined aluminum case adds protection and looks for custom dashes and riders that love chrome.
Veypor Extra Wiring Harness
Use it to mount your Veypor/VR2 on another motorcycle or automobile.
Specify bike or car.
Veypor Extra RAM Clamp Mount
Mount your Veypor/VR2 on another vehicle using this RAM Clamp Mount.
Veypor Extra RAM Suction Mount
Mount your Veypor/VR2 on another vehicle using this RAM Suction Cup Mount.
Veypor VIR
The Veypor Infra-red Lap Timer receiver provides automated lap timing with 1/100th of second accuracy for all your racing and track days needs.
Veypor HUD - Heads Up Display
The Ultimate upgrade for your Veypor or VR2. Adding the SportVue Heads Up Display gives you fighter jet technology and puts all your critical riding information directly in your field of view.
Veypor The original Veypor data aquistion system. Lower cost with a few less features than the VR2. $279.99
CR Cams CycleRama  EVO design camshafts


in.  lift  .581 22/ 46 248 duration
ex. lift .550 53/ 23 256 duration
CR-600/24E In. Lift .600 24/50 254 duration
Ex. Lift .530 56/24 260 duration
CR-600/23E In. Lift .600 23/51 254 duration
Ex. Lift .550 54/22 256 duration
Crane Contact us about Crane cams Call
Andrews Contact us about Andrews cams Call
V-Thunder Contact us about V-Thunder Cams $165
CR Ported Heads

CycleRama cylinder head porting.
Featured on many of Nightrider's own project engines and some of the top race bikes in the country, these heads provide excellent power tailored to your riding style. By special arrangement with CycleRama we are able to offer their head porting for riders on a budget. No fancy polishing which does nothing for your power, just a quality porting job with new valves, guides and springs. Available for EVO, XL and TC heads.
If your valves/guides are in good shape, you can save more.

CNC Ported TC heads CycleRama cylinder head porting.
The ultimate cylinder head porting for your Twin Cam engine. CNC ported to CycleRama's exacting standards and hand finished to ensure maximum power
Belt-to-Chain Drive Conversion Kits

Wide Tire Conversion Kit

The belt drive on your Harley Dyna and Softail is very likely to fail if you have a highly modified engine. Replacement of belts is not only inconvenient, it is expensive and time consuming. While belts are clean running and don't need adjustments, "X-ring" chains provide an excellent, low-maintenance way to prevent failure in your drive train.

Chain drive is also an easy way to install a wider tire on your Dyna or Softail. You can easily install a 150/90 or larger tire on the rear of your bike with the chain drive conversion kit.

Nightrider is creating  complete Belt-to-Chain conversion kits for your Dyna or Softail. We will provide the appropriate gearing for performance or cruising, all sprockets, spacers and a high quality chain that will work with 170+HP engines.

Need to improve your acceleration or just want the wide tire look on your motorcycle, The Nightrider conversion kits are for you.

Most Configurations


If you are interested in any of these items, just e-mail
