Ignition System Components

Technical information on the ignition system for Harley-Davidson motorcycles. This diagram provides a parts detail for a typical engine.

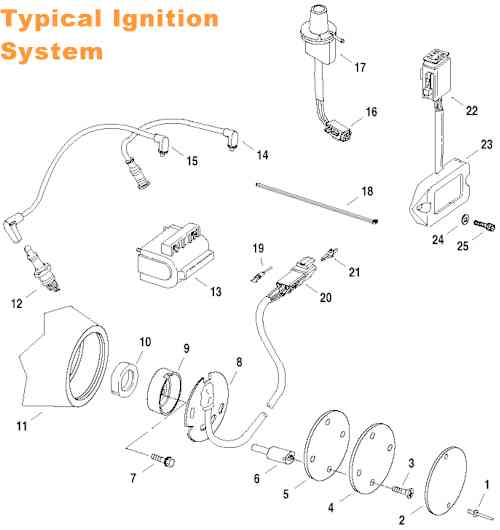

Typical Ignition System Components
1. Pop rivet (2)
2. Timer cover
3. Screw (2)
4. Inner cover
5. Ignition gasket
6. Timer plate stud (2)
7. Bolt
8. Sensor assembly
9. Trigger rotor
10. Seal
11. Gearcase cover
12. Spark plug (2)
13. Ignition coil
14. Front spark plug cable
15. Rear spark plug cable
16. V.O.E.S. connector [P7]
17. V.O.E.S.
18. Cable strap
19. Terminal pin
20. Timer connector [P16]
21. Secondary lock
22. Ignition module connector [P10]
23. Ignition module
24. Washer (2)
25. Screw (2)
